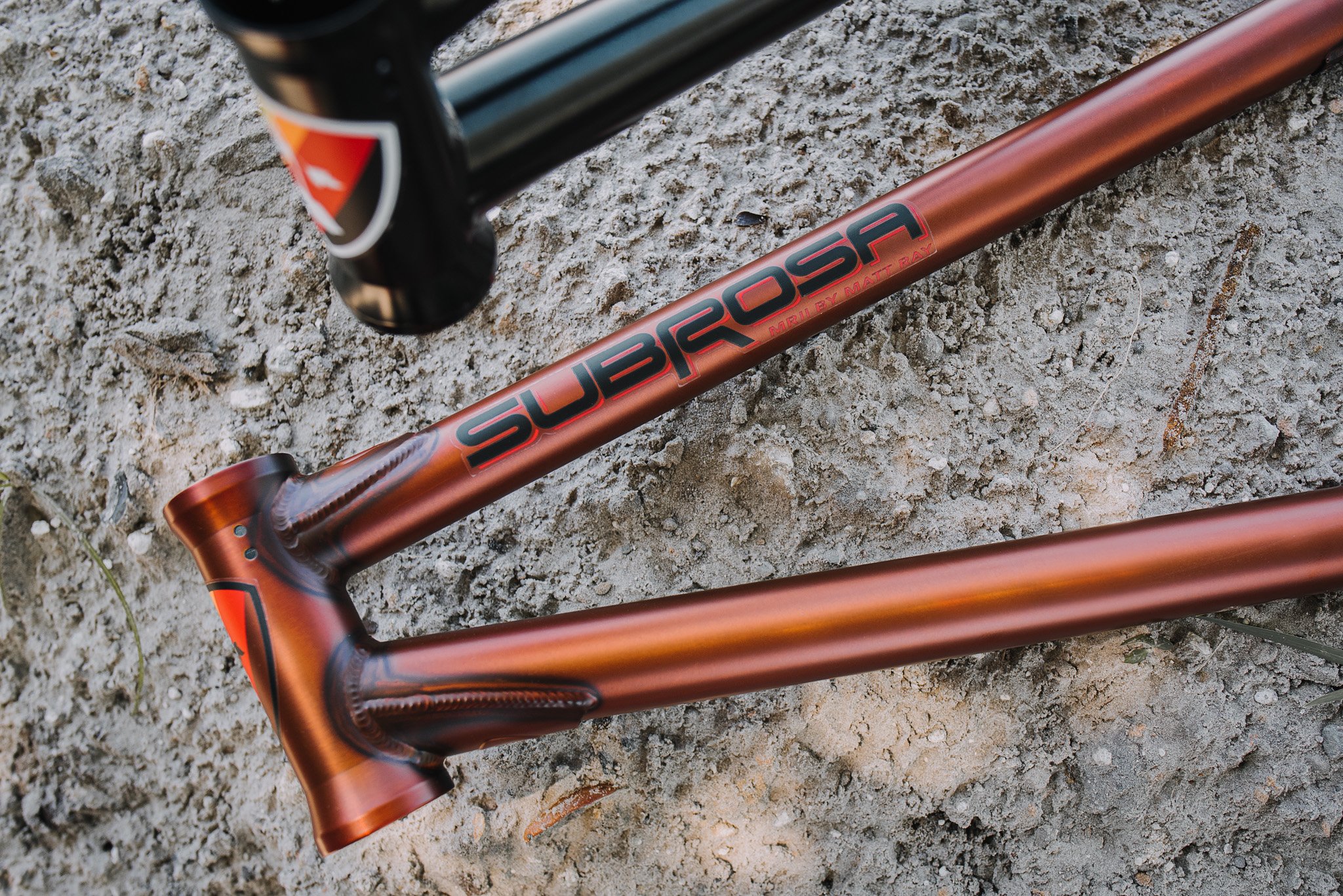

Introducing the new MR2 Frame
You’ve seen Matt Ray testing one for a while now, but today we are officially announcing the arrival of the all new MR2 Frame! Check out some of the new spec and details now.
Matt has been basically riding non-stop since we sat him down on his very own signature frame dubbed the MR1. Although Matt’s big burley riding style hasn’t change, he wanted to fine tune a few things on his frame and change the theme to freshen it up a bit.
We added to the standover height and changed it from an 8.75” to 9” to make the bike a little more stable.
The Bottom Bracket height was also raised just a little bit, for a little extra pop.
We also increased the length of the dropout slot to make the frame compatible with more gear ratios, and it also makes it easier to remove the rear wheel during repairs.
Lastly, to go with Matt’s love for his Toyota truck, we paid tribute to the classic colors and striping. This bike is built the same way and is designed to ride all terrains just like Matt.
The Matt Ray signature Subrosa MR2 Frame is arriving at stores worldwide now.
Look for Matt’s new All Terrain Pivotal Seat arriving later this year.
Revisions from MR1-
– Longer dropout slot
– Taller standover
– BB height raised from 34mm to 38mm
MR2 Frame Spec-
– Matt Ray Signature Frame
– Sizes: 20.5”, 20.75”, 21”, 21.2”
– 4130 chromoly, double butted top tube and down tube
– Head tube: 75° / 120mm
– Seat tube: 71° / 9.0’’ / integrated seat clamp
– Chain stays: 13.3″ – 14.0″
– BB: 11.5”/ 38mm – Mid
– Weight: 5.1 lbs (20.5”)
– Colors: Satin Translucent Orange, Black
